Cleveland
#4-40 UNC High Speed Steel Tap - Cleveland C58515
MFR# C58515Series 1093; 1094
$27.02List $34.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
Description

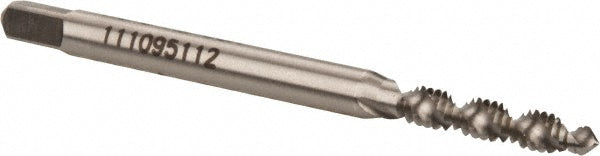

The Cleveland C58515 is a #4-40 UNC High Speed Steel tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferPlug
Class of fit2B; 3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAlloy Tool Steel; Carbon Steel; Stainless Steel
Neck length0.2600
Number of flutes2
Overall length in1-7/8
OversizeNo
Shank diameter0.1410
Square length0.1875
Square size0.1100
Threads per inch40
Thread directionRight Hand
Thread length0.3100
Thread limitH2
Thread size in#4-40
Thread standardUNC
