Cleveland

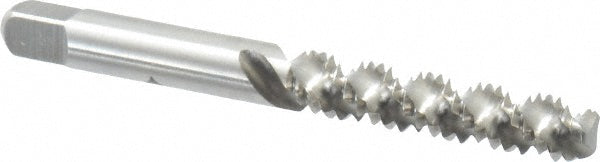

1/4-20 UNC High Speed Steel Tap - Cleveland C58563
MFR# C58563Series 1093; 1094
$23.76List $30.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
Description
The Cleveland C58563 is a 1/4-20 UNC High Speed Steel tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAlloy Tool Steel; Carbon Steel; Stainless Steel
Neck length0.3900
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square length0.3125
Square size0.1910
Threads per inch20
Thread directionRight Hand
Thread length0.6300
Thread limitH3
Thread size in1/4-20
Thread standardUNC
