Cleveland

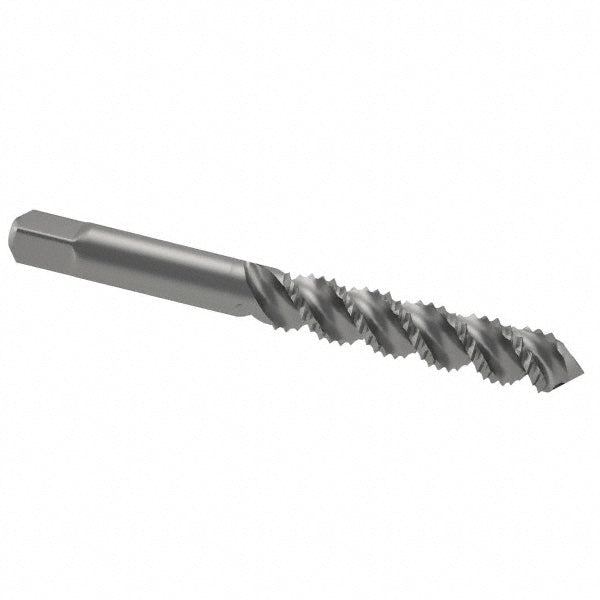

5/16-18 UNC High Speed Steel Tap - Cleveland C58570
MFR# C58570Series 1093; 1094
$29.45List $37.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
Description
The Cleveland C58570 is a 5/16-18 UNC High Speed Steel tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAlloy Tool Steel; Carbon Steel; Stainless Steel
Neck length0.4500
Number of flutes3
Overall length2.7190
OversizeNo
Shank diameter0.3180
Square length0.3750
Square size0.2380
Threads per inch18
Thread directionRight Hand
Thread length0.6900
Thread limitH3
Thread size in5/16-18
Thread standardUNC
