Cleveland

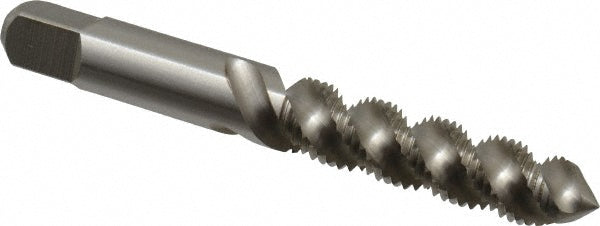

3/8-24 UNF High Speed Steel Tap - Cleveland C58583
MFR# C58583Series 1093; 1094
$34.60List $43.61
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
Description
The Cleveland C58583 is a 3/8-24 UNF High Speed Steel tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAlloy Tool Steel; Carbon Steel; Stainless Steel
Neck length in33/64
Number of flutes3
Overall length2.9380
OversizeNo
Shank diameter0.3180
Square length0.4375
Square size0.2860
Threads per inch24
Thread directionRight Hand
Thread length0.7500
Thread limitH3
Thread size in3/8-24
Thread standardUNF
