Cleveland

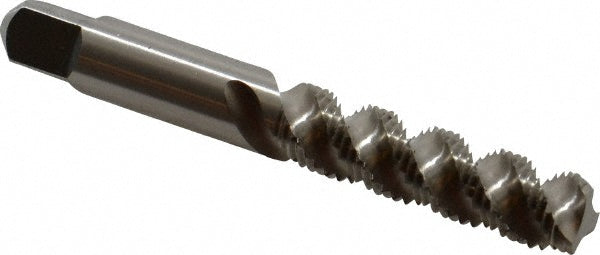

3/8-24 UNF High Speed Steel Tap - Cleveland C58584
MFR# C58584Series 1093; 1094
$34.36List $44.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
Description
The Cleveland C58584 is a 3/8-24 UNF High Speed Steel tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAlloy Tool Steel; Carbon Steel; Stainless Steel
Neck length in33/64
Number of flutes3
Overall length2.9380
OversizeNo
Shank diameter0.3810
Square length0.4375
Square size0.2860
Threads per inch24
Thread directionRight Hand
Thread length0.7500
Thread limitH3
Thread size in3/8-24
Thread standardUNF
