Cleveland
1/2-20 UNF High Speed Steel Tap - Cleveland C58616
MFR# C58616Series 1093; 1094
$61.08List $78.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
Description

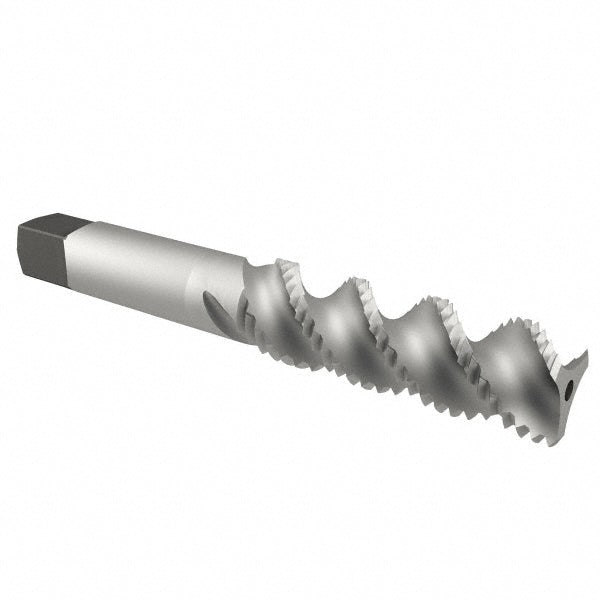

The Cleveland C58616 is a 1/2-20 UNF High Speed Steel tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAlloy Tool Steel; Carbon Steel; Stainless Steel
Neck length0.7300
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length0.4375
Square size0.2750
Threads per inch20
Thread directionRight Hand
Thread length0.9400
Thread limitH3
Thread size in1/2-20
Thread standardUNF
