Cleveland

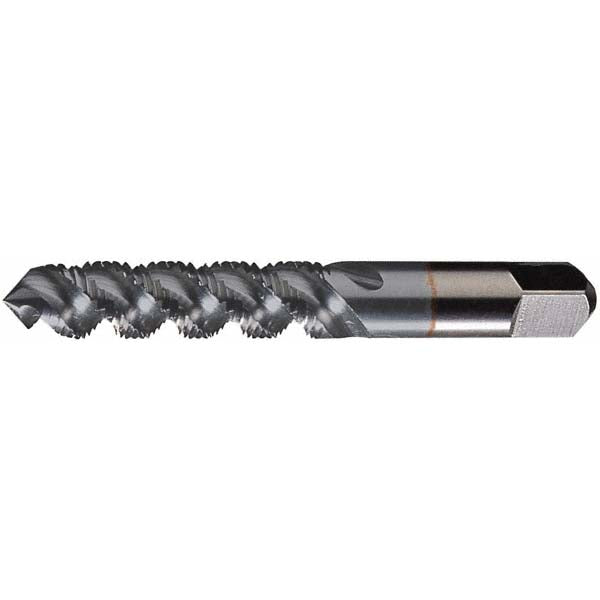

M4 x 0.70 Metric High Speed Steel Tap, TICN - Cleveland C58905
MFR# C58905Series 1094TICN
$29.39List $37.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTICN
Description
The Cleveland C58905 is a Metric High Speed Steel tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAluminum & Non-Ferrous Metal; Stainless Steel; Steel
Neck length0.3900
Number of flutes3
Overall length in2-1/8
OversizeNo
Shank diameter0.1680
Square length0.2500
Square size0.1310
Thread directionRight Hand
Thread length0.3800
Thread limitD4
Thread pitch (mm)0.70
Thread size (mm)M4 x 0.70
Thread standardMetric
