Cleveland
1/4-28 UNF High Speed Steel Standard Tap - Cleveland C60752
MFR# C60752Series 1002L
$20.40List $26.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-28
Description

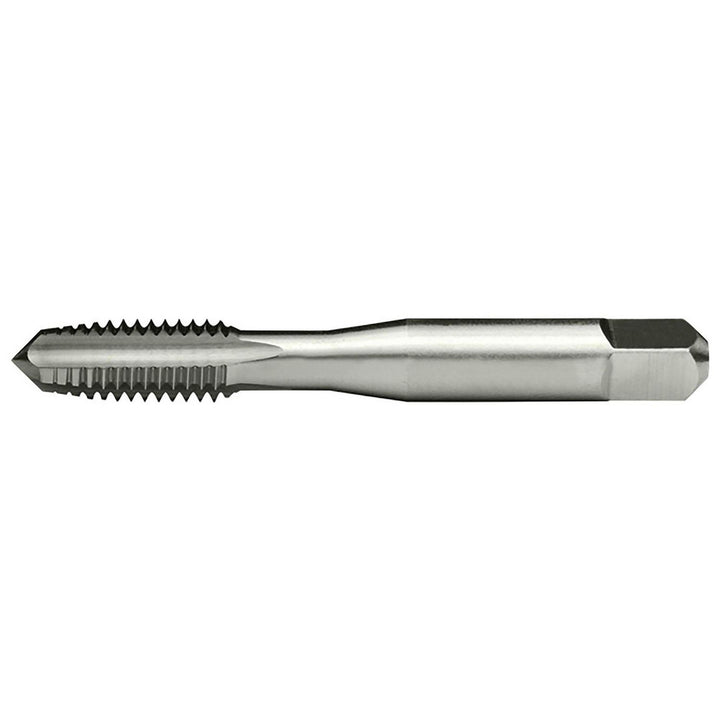

The Cleveland C60752 is a 1/4-28 UNF High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Non-Ferrous Metal Aluminum; Stainless Steel; Steel
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square length in5/16
Square size0.1910
Tap typeStandard
Threads per inch28
Thread directionLeft Hand
Thread length in1
Thread limitH3
Thread size in1/4-28
Thread standardUNF
