Cleveland

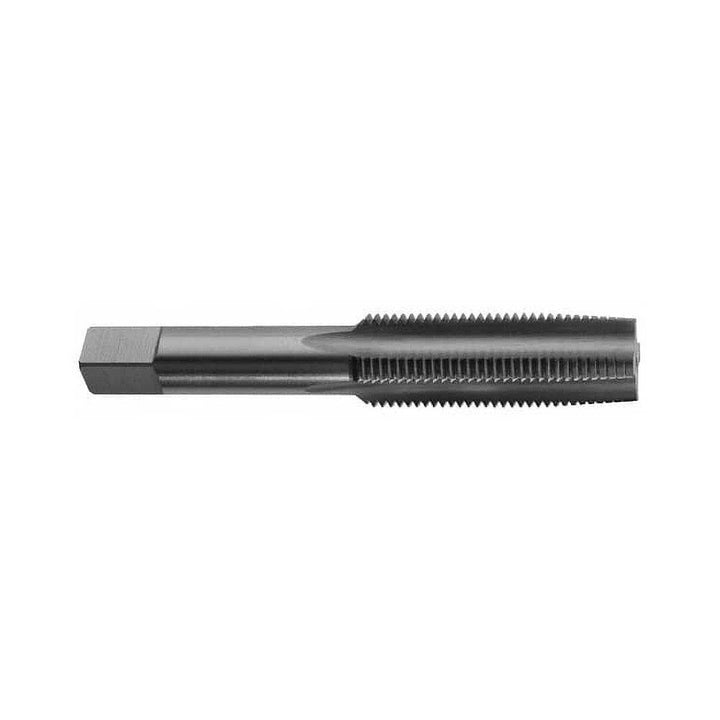

5/16-24 UNF High Speed Steel Standard Tap - Cleveland C60764
MFR# C60764Series 1002L
$20.85List $26.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-24
Description
The Cleveland C60764 is a 5/16-24 UNF High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Non-Ferrous Metal Aluminum; Stainless Steel; Steel
Number of flutes4
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square length in3/8
Square size0.2380
Tap typeStandard
Threads per inch24
Thread directionLeft Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-24
Thread standardUNF
