Cleveland

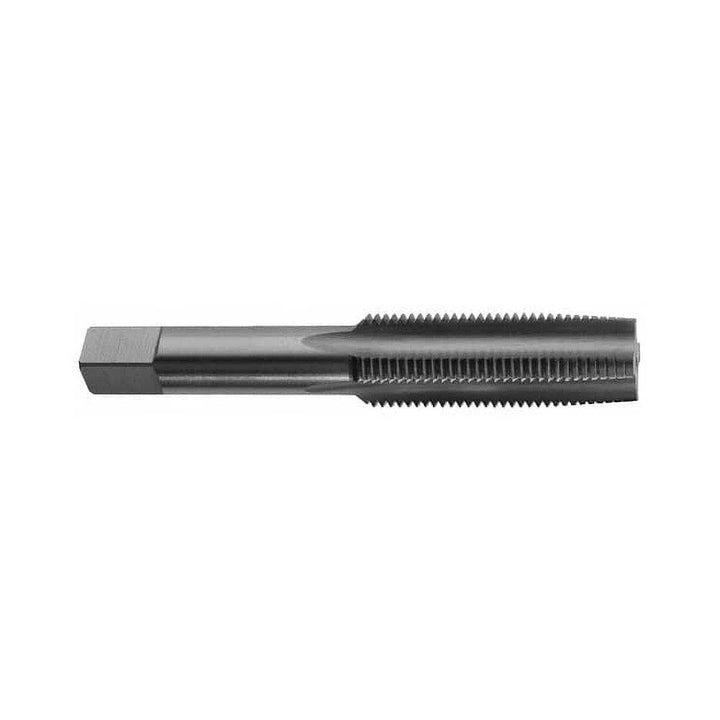

3/8-16 UNC High Speed Steel Standard Tap - Cleveland C60776
MFR# C60776Series 1002L
$19.53List $25.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-16
Description
The Cleveland C60776 is a 3/8-16 UNC High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Non-Ferrous Metal Aluminum; Stainless Steel; Steel
Number of flutes4
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square length in7/16
Square size0.2860
Tap typeStandard
Threads per inch16
Thread directionLeft Hand
Thread length in1-1/4
Thread limitH3
Thread size in3/8-16
Thread standardUNC
