Cleveland

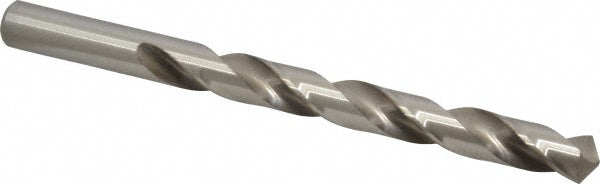

15/32" High Speed Steel Drill Bit, 118° point - Cleveland C72030
MFR# C72030Series 2002G
$13.94List $17.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
Description
The Cleveland C72030 is a 15/32" High Speed Steel drill bit, 118° point. 4-5/16 flute length, 5-3/4 overall length. Series 2002G.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length in4-5/16
Flute typeSpiral
Number of flutes2
Overall length in5-3/4
Point typeStandard
Shank diameter0.4688
Shank length1.4375
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
