Cleveland

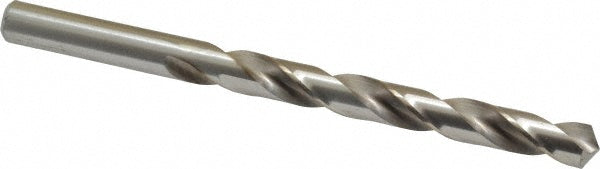

Letter V High Speed Steel Drill Bit, 118° point - Cleveland C72092
MFR# C72092Series 2002G
$9.50List $12.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C72092 is a Letter V High Speed Steel drill bit, 118° point. 3-5/8 flute length, 5 overall length. Series 2002G.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.3770
Drill bit size letterV
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length in3-5/8
Flute typeSpiral
Number of flutes2
Overall length in5
Point typeStandard
Shank diameter0.3770
Shank length1.3750
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
