Cleveland

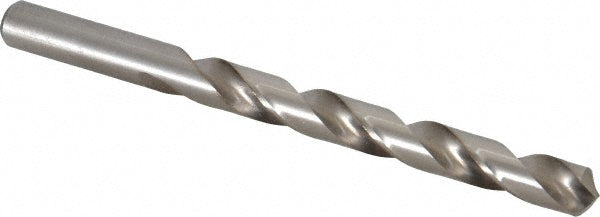

Letter Y High Speed Steel Drill Bit, 118° point - Cleveland C72095
MFR# C72095Series 2002G
$12.10List $15.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C72095 is a Letter Y High Speed Steel drill bit, 118° point. 3-7/8 flute length, 5-1/4 overall length. Series 2002G.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.4040
Drill bit size letterY
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length in3-7/8
Flute typeSpiral
Number of flutes2
Overall length in5-1/4
Point typeStandard
Shank diameter0.4040
Shank length1.3750
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
