Cleveland
#60 High Speed Steel Drill Bit, 118° point - Cleveland C72160
MFR# C72160Series 2002G
$2.12List $2.67
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

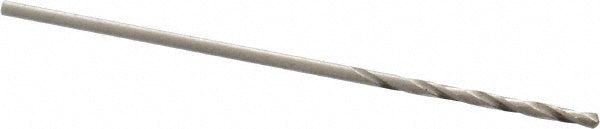

The Cleveland C72160 is a #60 High Speed Steel drill bit, 118° point. 11/16 flute length, 1-5/8 overall length. Series 2002G.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0400
Drill bit size range0.0000 - 0.0500
Drill bit size wire#60
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length in11/16
Flute typeSpiral
Number of flutes2
Overall length in1-5/8
Point typeStandard
Shank diameter0.0400
Shank length0.9375
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
