Cleveland

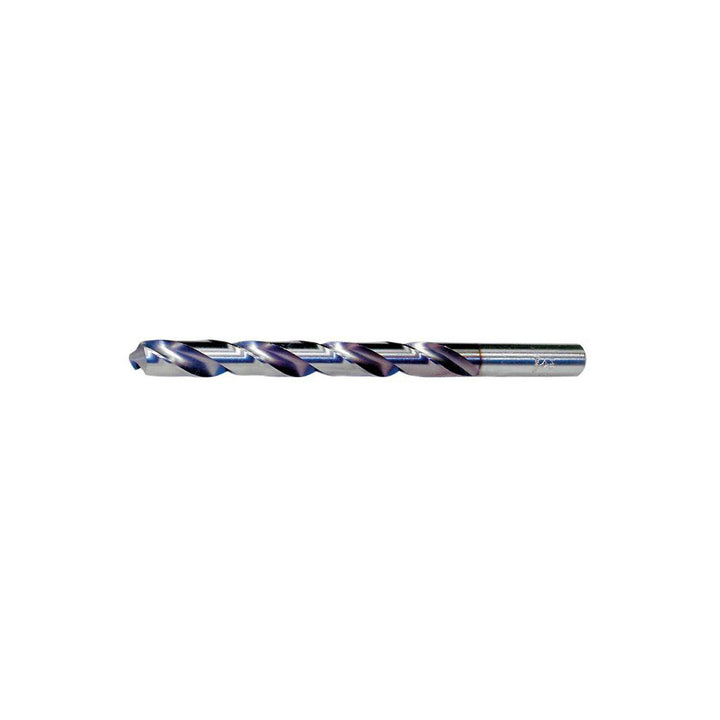

#7 High Speed Steel Drill Bit, TiCN, 118° point - Cleveland C73107
MFR# C73107Series 2002G-TC
$5.79List $7.42
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiCN
Description
The Cleveland C73107 is a #7 High Speed Steel drill bit with a TiCN finish, 118° point. Suited for aluminum. Series 2002G-TC.
Specifications
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingTiCN
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.2010
Drill bit size range0.2000 - 0.2500
Drill bit size wire#7
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length2.4380
Flute typeSpiral
Number of flutes2
Overall length3.6250
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.2010
Shank length1.1870
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
