Cleveland

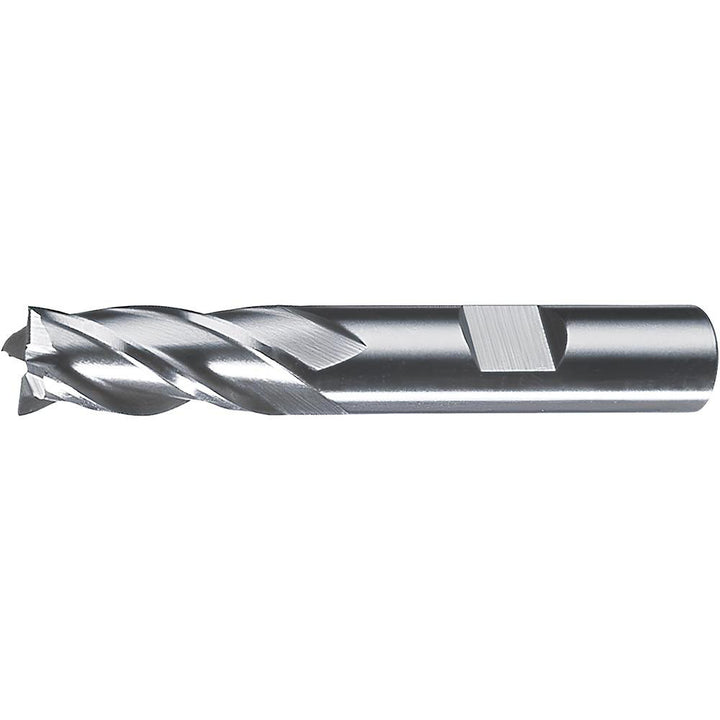

0.2362" 4-Flute High Speed Steel Square End Mill - Cleveland C75094

MFR# C75094Series HG-4MC

$30.50List $39.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialHigh Speed Steel

CoatingBright/Uncoated

Description

The Cleveland C75094 is a 0.2362 4-flute High Speed Steel (High-Speed Steel) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy. 5/8 length of cut, 2-7/16 overall length. Series HG-4MC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8

Length typeRegular

Material gradeHigh-Speed Steel

Mill diameter0.2362

Number of flutes4

Overall length in2-7/16

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Shank diameter in3/8

Shank typeWeldon Flat

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
