Cleveland

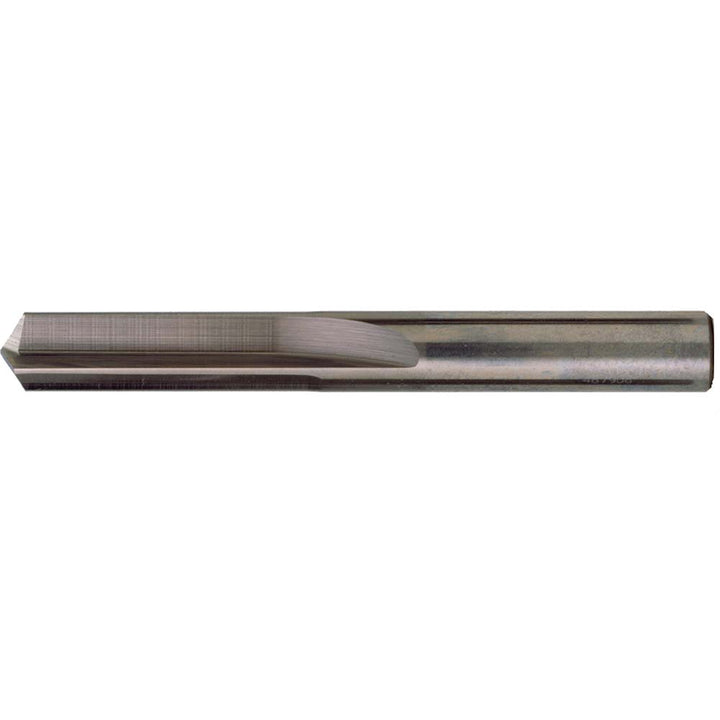

3/16" Solid Carbide Drill Bit, 140° point - Cleveland C89468
MFR# C89468Series 1766
$39.21List $50.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
Description
The Cleveland C89468 is a 3/16" Solid Carbide drill bit, 140° point. Suited for cast iron, steel. Series 1766.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in3/16
Drill point angle degrees140
Flute length1.1250
Flute typeStraight
Maximum drilling depth0.6563
Number of flutes2
Overall length2.1875
Point typeFour Facet
Primary workpiece materialCast Iron; Steel
Shank diameter in3/16
Shank length1.0625
Spiral typeRegular
StandardsASME B94.11M
Web configurationTapered
