Cleveland

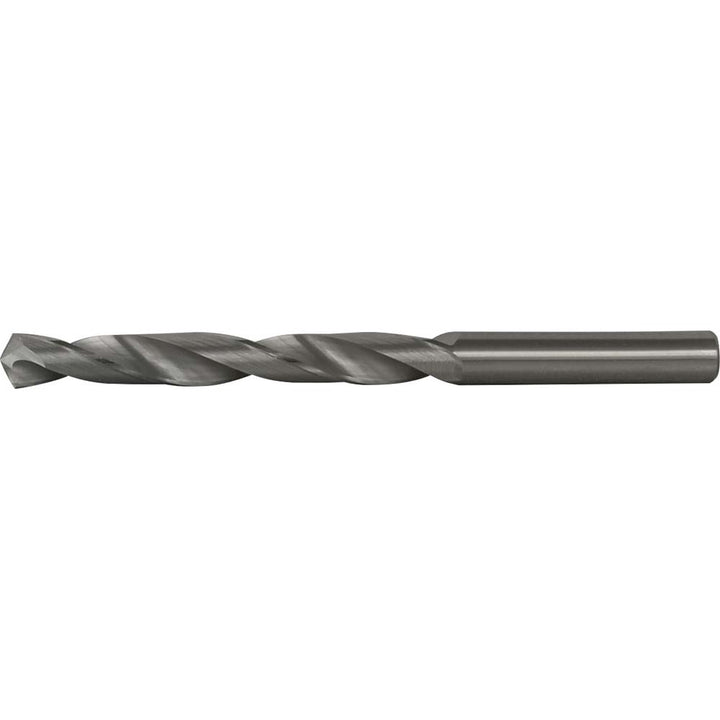

#2 Solid Carbide Drill Bit, 118° point - Cleveland C89572
MFR# C89572Series 1727
$66.40List $83.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C89572 is a #2 Solid Carbide drill bit, 118° point. Suited for aluminum & non-ferrous. Series 1727.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeSub Micrograin
Drill bit materialSolid Carbide
Drill bit size0.2210
Drill bit size range0.2000 - 0.2500
Drill bit size wire#2
Drill point angle degrees118
Flute length1.7500
Flute typeRegular Spiral
Material gradeSub Micrograin
Maximum drilling depth0.7735
Number of flutes2
Overall length3.0000
Point type4 Facet
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in1-1/4
Shank length1.2500
Shank typeStraight
Specification designationANSI
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
