Criterion

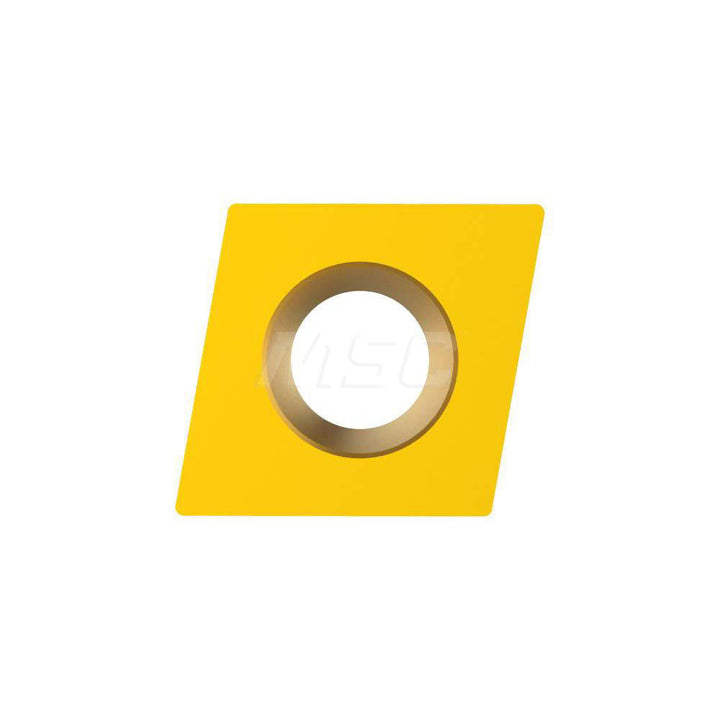

CCMT09T304 Solid Carbide Insert, Grade BK2710, Coated - Criterion CCMT09T304
MFR# CCMT09T304Series CCMT
$12.25List $14.90
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBK2710
MaterialSolid Carbide
CoatingCoated
Description
The Criterion CCMT09T304 is a CCMT09T304 solid carbide indexable insert, grade BK2710, Coated coated.
Specifications
Ansi codeCCMT3251
ChipbreakerPSMKN
Coating finishCoated
Corner radius0.0160
Included angle80
Inscribed circle in3/8
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code09T304
Insert styleCCMT
Iso codeCCMT09T304
Manufacturer gradeBK2710
Relief angle7
ShapeDiamond
StandardsANSI; ISO
Thickness in5/32
