Dapra

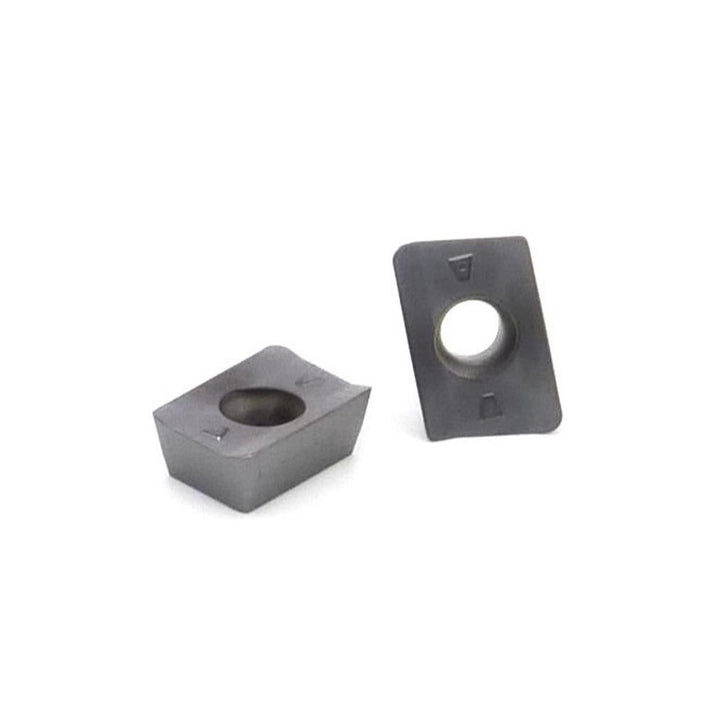

Square Solid Carbide Insert, Grade DMP30, 2-Slick High-Temp - Dapra 25160
MFR# 25160Cat# APET100308-DMP30-GLHSeries APET
$12.49List $14.26
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeDMP30
MaterialSolid Carbide
Coating2-Slick High-Temp
Description
The Dapra 25160 is a solid carbide indexable insert, grade DMP30, 2-Slick High-Temp coated. Suited for hard material, cast iron, steel.
Specifications
Ansi codeAPET100308-DMP30-GLH
Chip breakerDMP
Coating finish2-Slick High-Temp
Corner radius in1/32
Cutter series compatibilitySSEM; SSER; CC-SSER; SSSM-MOD; BCSM; CMEM; HREM
Cutting edge styleT-Land
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100308
Insert styleAPET
Length0.3800
Length range0.3200 to 0.4000
Manufacturers catalog numberAPET100308-DMP30-GLH
Manufacturer gradeDMP30
Material applicationHard Material; Cast Iron; Steel
Material gradeC2
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material; Cast Iron; Steel
Single or double sided insertSingle
Width in1/4
