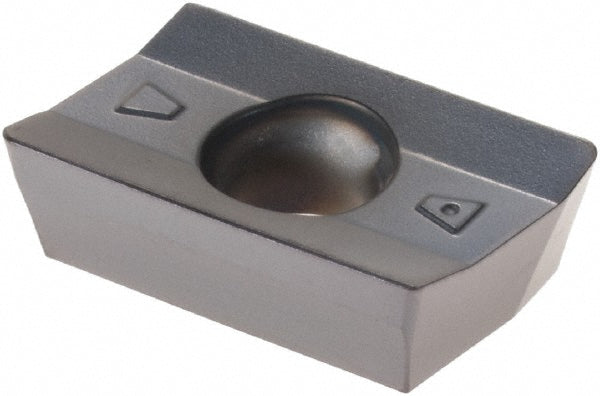

ISO Solid Carbide Insert, Grade DMK25, 2-Slick High-Temp - Dapra 25660

Dapra

ISO Solid Carbide Insert, Grade DMK25, 2-Slick High-Temp - Dapra 25660

MFR# 25660ISO/ANSI# ISOCat# APET160408Series APET

$14.27List $16.30 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare Shoulder
GradeDMK25
MaterialSolid Carbide
Coating2-Slick High-Temp

Description

The Dapra 25660 is a ISO solid carbide indexable insert, grade DMK25, 2-Slick High-Temp coated. Suited for hard material, cast iron, non-ferrous metal.

Specifications

Ansi codeAPET160408-DMK25-GLH
Chip breakerDMK
Coating finish2-Slick High-Temp
Coating processUncoated
Corner radius in1/32
Cutter series compatibilitySSEM; SSER; CC-SSER; SSSM; SSSM-MOD; BCSM; CMEM; HREM; HRSM
Cutting edge styleT-Land
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare Shoulder
Insert size16
Insert size code160408
Insert styleAPET
Iso codeISO
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberAPET160408
Manufacturer gradeDMK25
Material applicationHard Material; Cast Iron; Non-Ferrous Metal; Steel
Material gradeC3
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material; Cast Iron; Non-Ferrous Metal
RakePositive
Relief angle11
Secondary workpiece materialSteel
Single or double sided insertSingle
Width in3/8
