Dapra

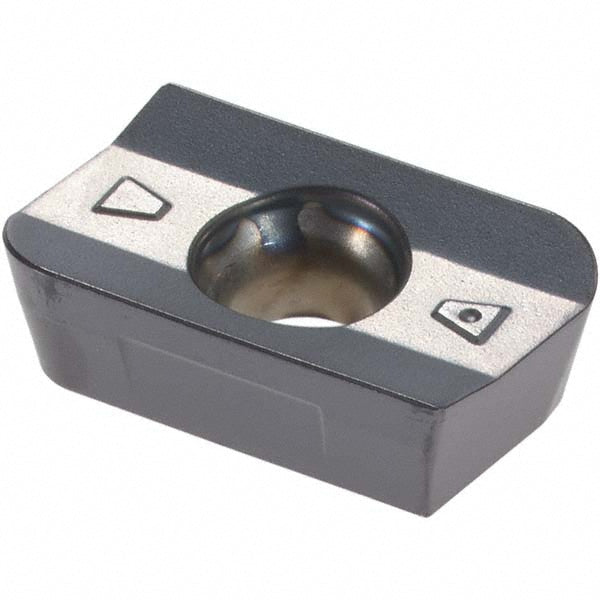

ISO Solid Carbide Insert, Grade DMP30, 2-Slick High-Temp - Dapra 26660
MFR# 26660ISO/ANSI# ISOCat# APET160431Series APET
$14.27List $16.30
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare Shoulder
GradeDMP30
MaterialSolid Carbide
Coating2-Slick High-Temp
Description
The Dapra 26660 is a ISO solid carbide indexable insert, grade DMP30, 2-Slick High-Temp coated. Suited for hard material, cast iron, steel.
Specifications
Ansi codeAPET160431-DMP30-GLH
Chip breakerDMP
Coating finish2-Slick High-Temp
Corner radius0.1200
Cutter series compatibilitySSEM; SSER; CC-SSER; SSSM; SSSM-MOD; BCSM; CMEM; HREM; HRSM
Cutting edge styleT-Land
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare Shoulder
Insert size16
Insert size code160431
Insert styleAPET
Iso codeISO
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberAPET160431
Manufacturer gradeDMP30
Material applicationHard Material; Cast Iron; Steel
Material gradeC2
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material; Cast Iron; Steel
Single or double sided insertSingle
Width in3/8
