Dapra

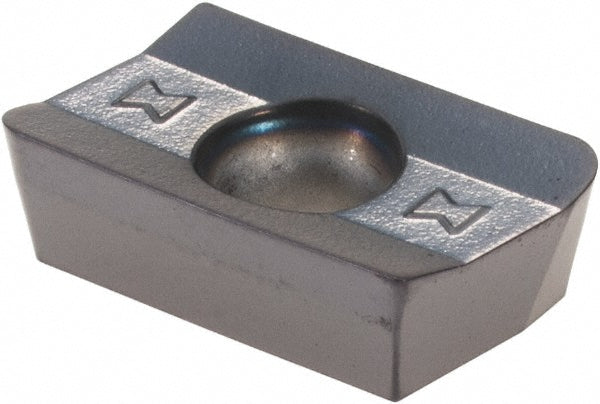

Square Shoulder Solid Carbide Insert, Grade DMP35, 2-Slick High-Temp - Dapra 29260
MFR# 29260Cat# XPET160416Series XPET
$15.39List $17.57
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare Shoulder
GradeDMP35
MaterialSolid Carbide
Coating2-Slick High-Temp
Description
The Dapra 29260 is a solid carbide indexable insert, grade DMP35, 2-Slick High-Temp coated. Suited for steel, cast iron.
Specifications
Ansi codeXPET160416-DMP35-GLH
Chip breakerDMP
Coating finish2-Slick High-Temp
Coating processUncoated
Corner radius in1/16
Cutter series compatibilitySSEM; SSER; CC-SSER; SSSM; SSSM-MOD; BCSM; CMEM; HREM; HRSM
Cutting edge styleHoned
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare Shoulder
Insert size16
Insert size code160416
Insert styleXPET
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberXPET160416
Manufacturer gradeDMP35
Material applicationSteel; Cast Iron; High-Temperature Alloy; Stainless Steel
Material gradeC1
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11
Secondary workpiece materialHigh Temperature Alloy; Stainless steel
Single or double sided insertSingle
Width in3/8
