Dapra

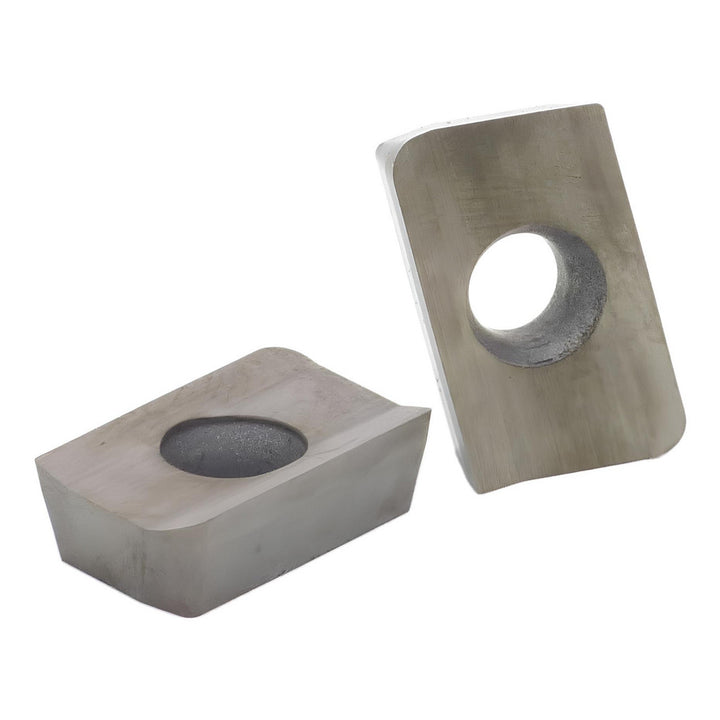

Square Shoulder Solid Carbide Insert, Grade DMK25 - Dapra 29932
MFR# 29932Cat# XPET160416Series XPET
$16.83List $19.21
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare Shoulder
GradeDMK25
MaterialSolid Carbide
Description
The Dapra 29932 is a solid carbide indexable insert, grade DMK25. Suited for hard material, cast iron, non-ferrous metal.
Specifications
Ansi codeXPET160416-ALU-DMK25
Chip breakerALU
Coating processUncoated
Corner radius in1/16
Cutter series compatibilitySSEM; SSER; CC-SSER; SSSM; SSSM-MOD; BCSM; CMEM; HREM; HRSM
Cutting edge styleHoned
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare Shoulder
Insert size16
Insert size code160416
Insert styleXPET
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberXPET160416
Manufacturer gradeDMK25
Material applicationHard Material; Cast Iron; Non-Ferrous Metal; Steel
Material gradeC3
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material; Cast Iron; Non-Ferrous Metal
Secondary workpiece materialSteel
Single or double sided insertSingle
Width in3/8
