Dapra

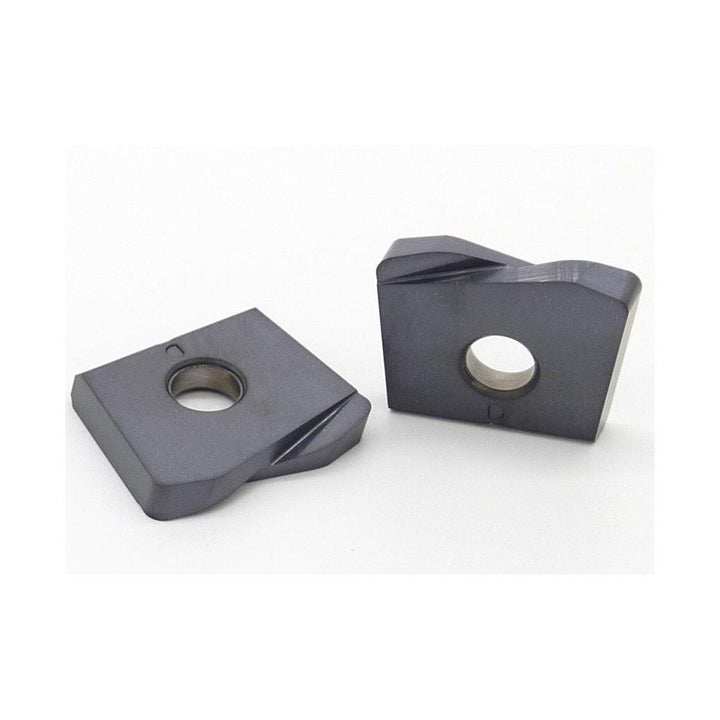

Back-Draft 3/4" IC Solid Carbide Insert, Grade F1, 2-Slick High-Temp - Dapra 42120
MFR# 42120Cat# HFBD-0750-FP-GLHSeries HFBD
$47.27List $54.05
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeBack-Draft
GradeF1
MaterialSolid Carbide
Coating2-Slick High-Temp
Description
The Dapra 42120 is a solid carbide indexable insert, grade F1, 2-Slick High-Temp coated. Suited for steel, cast iron, superalloys & titanium, hard material, non-ferrous metal.
Specifications
Ansi codeHFBD-0750-FP-GLH
Chip breakerFP
Coating finish2-Slick High-Temp
Corner radius in1/16
Hole diameter0.1972
Inscribed circle in3/4
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBack-Draft
Insert size07
Insert size code0750
Insert styleHFBD
Manufacturers catalog numberHFBD-0750-FP-GLH
Manufacturer gradeF1
Material applicationSteel; Cast Iron; High-Temperature Alloy; Non-Ferrous Metal; Hard Material
Maximum depth of cut0.0280
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium; Hard Material; Non-Ferrous Metal
Relief angle25.00
Single or double sided insertSingle
Thickness0.1178
