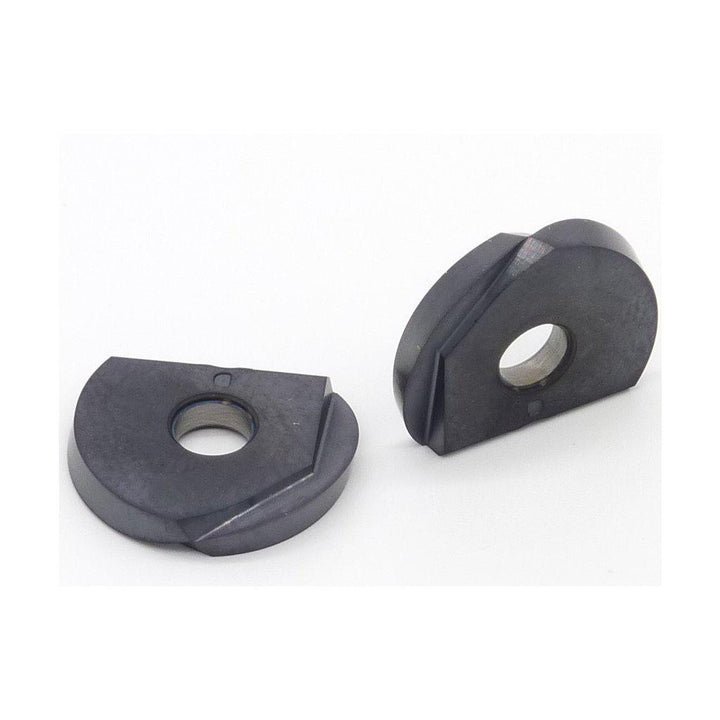

Helical Ball Nose 1/2" IC Solid Carbide Insert, Grade F1, 2-Slick High-Temp - Dapra 42640

Dapra

Helical Ball Nose 1/2" IC Solid Carbide Insert, Grade F1, 2-Slick High-Temp - Dapra 42640

MFR# 42640Cat# HBN-0750-FP-GLHSeries HBN

$47.39List $54.18 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeHelical Ball Nose
GradeF1
MaterialSolid Carbide
Coating2-Slick High-Temp

Description

The Dapra 42640 is a solid carbide indexable insert, grade F1, 2-Slick High-Temp coated. Suited for steel, cast iron, non-ferrous metal, hard material.

Specifications

Ansi codeHBN-0750-FP-GLH
Chip breakerFP
Coating finish2-Slick High-Temp
Hole diameter0.1972
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHelical Ball Nose
Insert size75
Insert size code750
Insert styleHBN
Manufacturers catalog numberHBN-0750-FP-GLH
Manufacturer gradeF1
Material applicationSteel; Cast Iron; Non-Ferrous Metal; Hard Material; High-Temperature Alloy; Stainless Steel
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal; Hard Material
Secondary workpiece materialHigh Temperature Alloy; Stainless steel
Single or double sided insertSingle
Thickness0.1178
