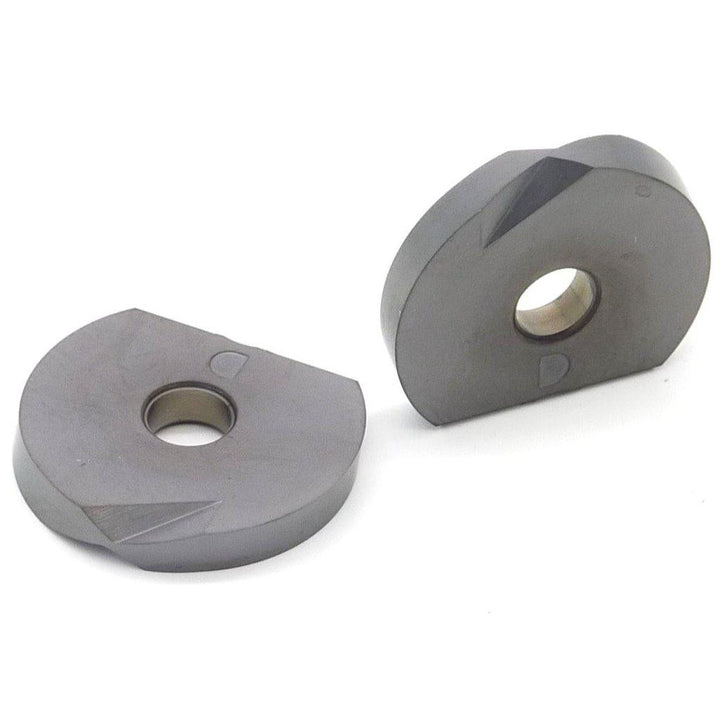

Ball Nose 3/4" IC Solid Carbide Insert, Grade F1, 2-Slick High-Temp - Dapra 43340

Dapra

Ball Nose 3/4" IC Solid Carbide Insert, Grade F1, 2-Slick High-Temp - Dapra 43340

MFR# 43340Cat# BNR-0750-N-FP-GLHSeries BNR

$40.83List $46.68 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeBall Nose
GradeF1
MaterialSolid Carbide
Coating2-Slick High-Temp

Description

The Dapra 43340 is a solid carbide indexable insert, grade F1, 2-Slick High-Temp coated. Suited for steel, cast iron, non-ferrous metal, hard material.

Specifications

Ansi codeBNR-0750-N-FP-GLH
Chip breakerN
Coating finish2-Slick High-Temp
Hole diameter0.1972
Inscribed circle in3/4
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size07
Insert size code0700
Insert styleBNR
Manufacturers catalog numberBNR-0750-N-FP-GLH
Manufacturer gradeF1
Material applicationSteel; Cast Iron; Non-Ferrous Metal; Hard Material; High-Temperature Alloy; Stainless Steel
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal; Hard Material
Secondary workpiece materialHigh Temperature Alloy; Stainless steel
Single or double sided insertSingle
Thickness0.1178
