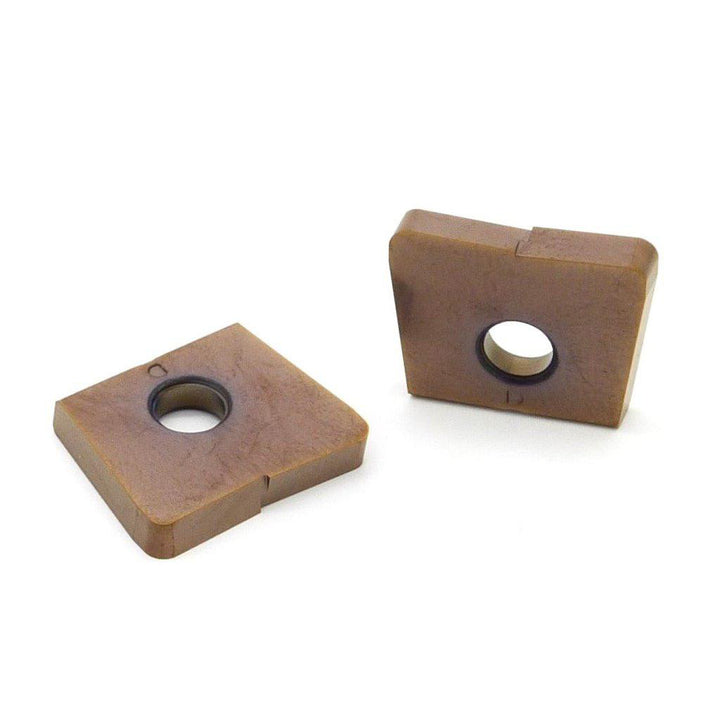

Back-Draft 1" IC Solid Carbide Insert, Grade F1, 2-Slick High-Temp - Dapra 47540

Dapra

Back-Draft 1" IC Solid Carbide Insert, Grade F1, 2-Slick High-Temp - Dapra 47540

MFR# 47540Cat# BDR-1000-N-FP-GLH-R1/16Series BDR

$57.30List $65.52 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1
ShapeBack-Draft
GradeF1
MaterialSolid Carbide
Coating2-Slick High-Temp

Description

The Dapra 47540 is a solid carbide indexable insert, grade F1, 2-Slick High-Temp coated. Suited for steel, cast iron, non-ferrous metal, hard material.

Specifications

Ansi codeBDR-1000-N-FP-GLH-R1/16
Chip breakerN
Coating finish2-Slick High-Temp
Corner radius in1/16
Hole diameter0.2366
Inscribed circle in1
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBack-Draft
Insert size10
Insert size code1000
Insert styleBDR
Manufacturers catalog numberBDR-1000-N-FP-GLH-R1/16
Manufacturer gradeF1
Material applicationSteel; Cast Iron; Non-Ferrous Metal; Hard Material; High-Temperature Alloy; Stainless Steel
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal; Hard Material
Relief angle7
Secondary workpiece materialHigh Temperature Alloy; Stainless steel
Single or double sided insertSingle
Thickness in5/32
