Dayton Lamina
Steel Die Bushing - Dayton Lamina 6-16-56
MFR# 6-16-56
$115.11List $127.34
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

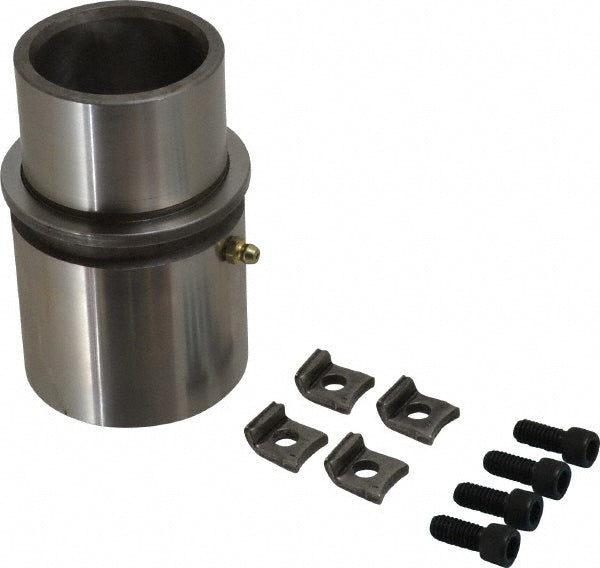

The Dayton Lamina 6-16-56 is a steel die bushing.
Specifications
Attachment methodDemountable
Bin2,1/2
Body typeExtra-Long Shoulder
Bottom outside diameter2.9090
Bushing typeFriction
C13.064
Clamp compatibility6-91-1
Collar outside diameter3.0640
F in3
Inside diameter in2
Length above collar in1-5/8
Length under collar3.0000
Length under collar frac in3
Lubrication typeNon-Self Lubricating
MaterialSteel
Top outside diameter2.5000
Top outside diameter frac in2-1/2
