Dayton Lamina
Die Spring - Dayton Lamina 9-0808-36
MFR# 9-0808-36
$3.49List $4.38
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

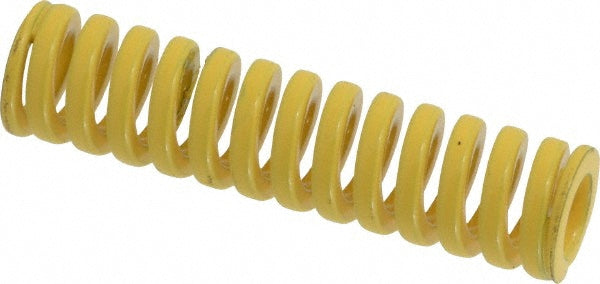

The Dayton Lamina 9-0808-36 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorYellow
Duty ratingExtra Heavy-Duty
Free length in2
Hole diameter in1/2
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection0.5000
Maximum deflection load lb77.00
Maximum operating deflection percent25.00
Rod diameter in9/32
StandardsISO 10243 International Standard
Travel to solid load0.6700
Wire shapeD-Shaped
