Dayton Lamina

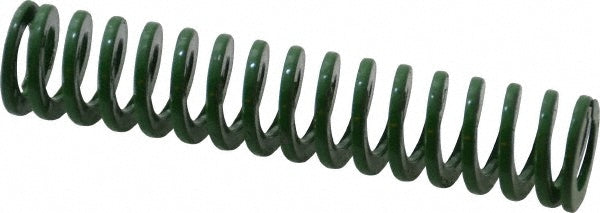

Die Spring - Dayton Lamina 9-1012-11
MFR# 9-1012-11
$3.08List $3.87
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-1012-11 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorGreen
Duty ratingLight-Duty
Free length in3
Hole diameter in5/8
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection1.2000
Maximum deflection load lb71.00
Maximum operating deflection percent40.00
Rod diameter in11/32
StandardsISO 10243 International Standard
Travel to solid load1.7400
Wire shapeD-Shaped
