Dayton Lamina

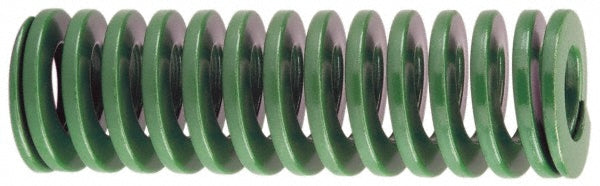

Die Spring - Dayton Lamina 9-1214-11
MFR# 9-1214-11
$5.41List $6.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-1214-11 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorGreen
Duty ratingLight-Duty
Free length in3-1/2
Hole diameter in3/4
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection1.4000
Maximum deflection load lb108.00
Maximum operating deflection percent40.00
Rod diameter in3/8
StandardsISO 10243 International Standard
Travel to solid load1.7900
Wire shapeD-Shaped
