Dayton Lamina
Die Spring - Dayton Lamina 9-1620-11
MFR# 9-1620-11
$8.46List $10.62
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

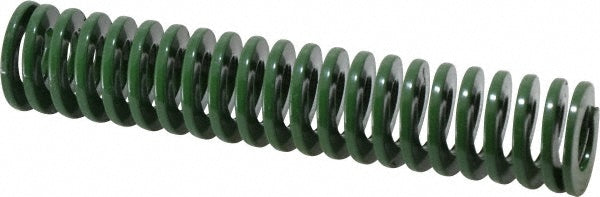

The Dayton Lamina 9-1620-11 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorGreen
Duty ratingLight-Duty
Free length in5
Hole diameter in1
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection2.0000
Maximum deflection load lb192.00
Maximum operating deflection percent40.00
Rod diameter in1/2
StandardsISO 10243 International Standard
Travel to solid load2.5500
Wire shapeD-Shaped
