Dayton Lamina

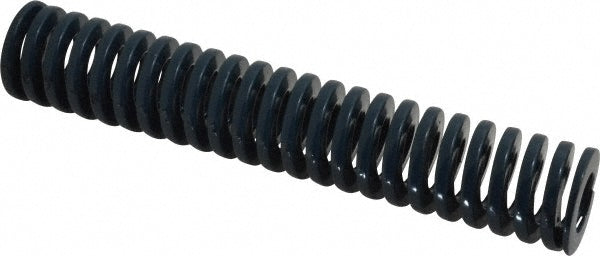

Die Spring - Dayton Lamina 9-1622-21
MFR# 9-1622-21
$11.03List $13.84
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-1622-21 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorBlue
Duty ratingMedium-Duty
Free length in5-1/2
Hole diameter in1
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection2.05
Maximum deflection load lb277
Maximum operating deflection percent37.50
Rod diameter in1/2
StandardsISO 10243 International Standard
Travel to solid load2.3600
Wire shapeD-Shaped
