Dayton Lamina

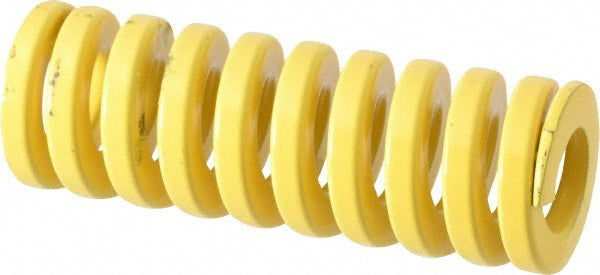

Die Spring - Dayton Lamina 9-2014-36
MFR# 9-2014-36
$13.96List $17.52
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-2014-36 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorYellow
Duty ratingExtra Heavy-Duty
Free length in3-1/2
Hole diameter in1-1/4
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection0.88
Maximum deflection load lb911
Maximum operating deflection percent25.00
Rod diameter in5/8
StandardsISO 10243 International Standard
Travel to solid load1.0900
Wire shapeD-Shaped
