Dayton Lamina

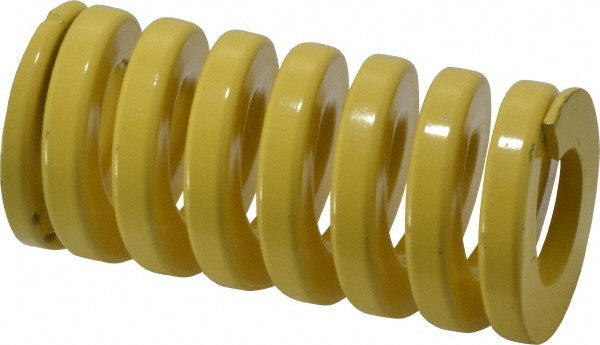

Die Spring - Dayton Lamina 9-3216-36
MFR# 9-3216-36
$36.56List $45.88
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-3216-36 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorYellow
Duty ratingExtra Heavy-Duty
Free length in4
Hole diameter in2
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection1.0000
Maximum deflection load lb2319.00
Maximum operating deflection percent25.00
Rod diameter in1
StandardsISO 10243 International Standard
Travel to solid load1.1500
Wire shapeD-Shaped
