Dayton Lamina

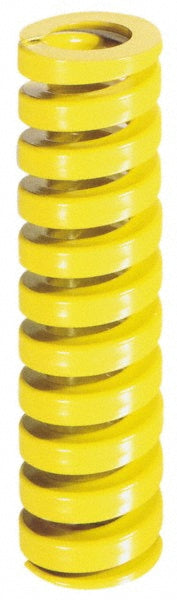

Die Spring - Dayton Lamina 9-3218-36
MFR# 9-3218-36
$35.14List $43.35
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-3218-36 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorYellow
Duty ratingExtra Heavy-Duty
Free length in4-1/2
Hole diameter in2
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection1.12
Maximum deflection load lb2255
Maximum operating deflection percent25.00
Rod diameter in1
StandardsISO 10243 International Standard
Travel to solid load1.3100
Wire shapeD-Shaped
