Dayton Lamina

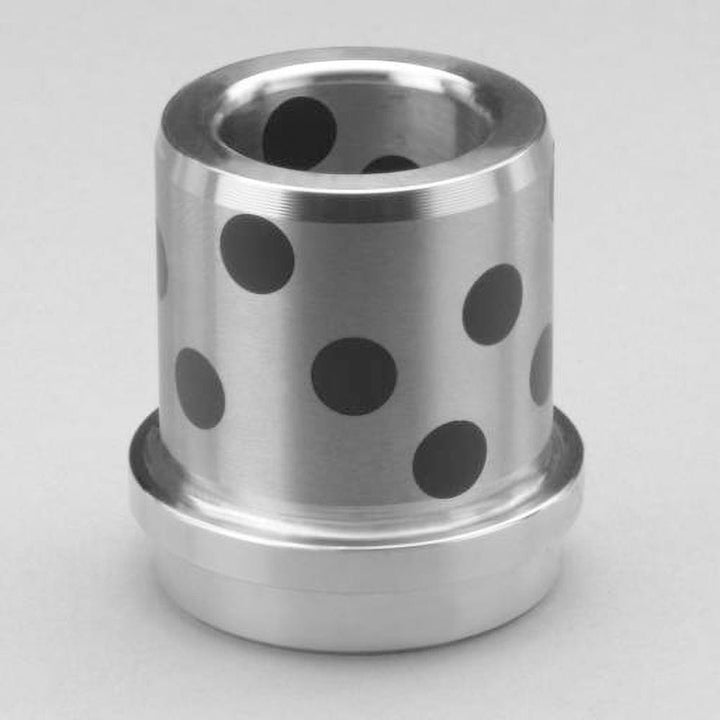

Cast Aluminum Bronze Die Bushing - Dayton Lamina GD100
MFR# GD100
$144.45List $178.17
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina GD100 is a cast aluminum bronze die bushing.
Specifications
Attachment methodDemountable
Bin1.72
Body typeShoulder
Bottom outside diameter in1-27/32
Bushing typeFriction
Clamp compatibility6-90-1
Collar outside diameter in1-3/4
D in1.00 (+.0005,+.0007)
H field1/4-20 x 3/4
Inside diameter in1
L115/16
Length above collar in15/16
Length under collar frac in1-3/4
Lubrication typeSelf-Lubricating
MaterialCast Aluminum Bronze
Top outside diameter1.5000
Top outside diameter frac in1-1/2
