Dayton Lamina

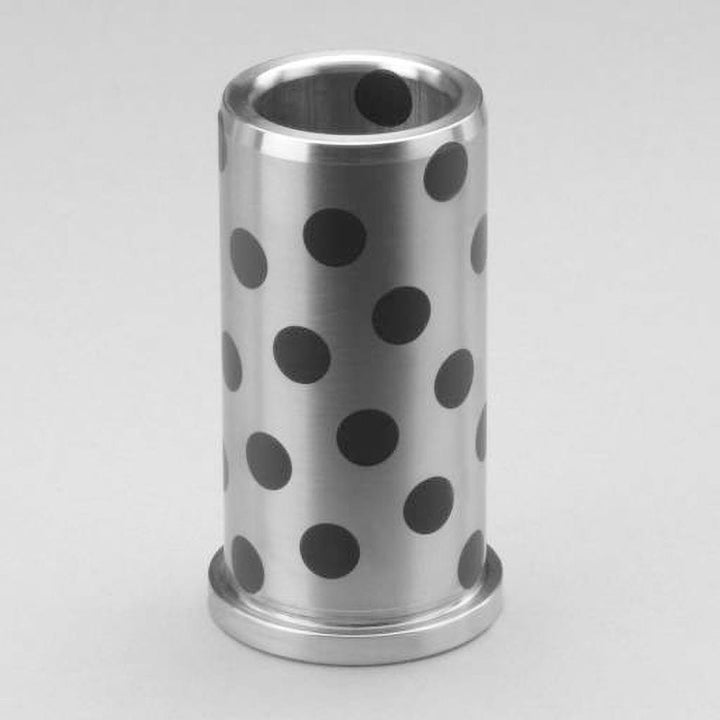

Aluminum Bronze Die Bushing - Dayton Lamina S2000-35G
MFR# S2000-35G
$160.39List $201.34
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina S2000-35G is a aluminum bronze die bushing.
Specifications
Attachment methodPress-Fit
Bin2.68
Body typeShoulder
Bottom outside diameter2.5005
Bushing typeFriction
Collar height frac in3/16
Collar outside diameter2.6800
D in2.0005
Inside diameter in2
Length above collar in4-3/16
Lubrication typeSelf-Lubricating
MaterialAluminum Bronze
Tolerance+0.0000in; -0.0600in
Top outside diameter2.5005
