De-Sta-Co

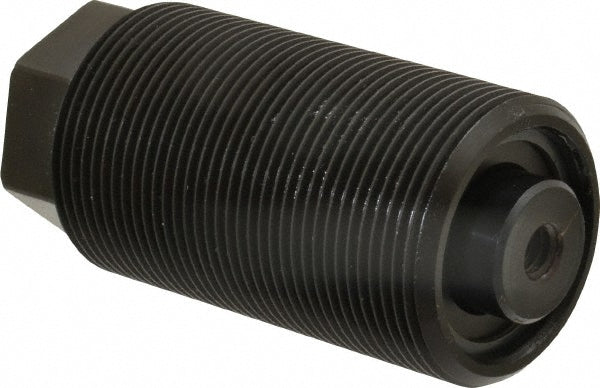

Clamping Accessory - De-Sta-Co 010-211-002
MFR# 010-211-002
$258.89
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 010-211-002 is a clamping accessory.
Specifications
Action typeSingle-Acting
Body thread length2.2500
Body thread size1-5/16 - 16
Effective clamping area0.79in
Effective piston area sq in0.79
End port sizeSAE #4
Hex size in1in
Maximum operating pressure psig5000.00
Maximum output force2.3550 @ 3000 psig lb
Maximum output force lb2.3550 @ 3000 psig
Operating stroke length in0.5in; 1/2
Operating volume cu in0.39
Operation typeHydraulic
Overall length in2.63in
Projection diameter0.6400
Projection length0.1300
Rod end thread size1/4-20
Side port size1/8 NPT
