De-Sta-Co

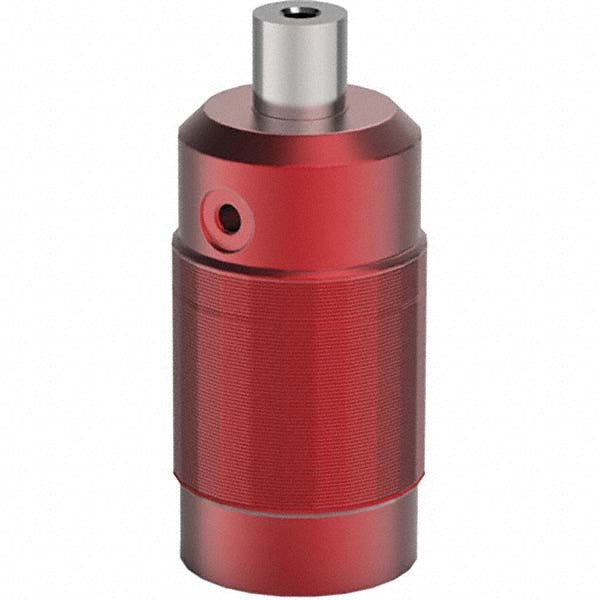

Swing Clamp - De-Sta-Co 035-125-190
MFR# 035-125-190
$391.84List $416.28
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 035-125-190 is a swing clamp.
Specifications
Action typeDouble
Arm length0.5700
Body diameter0.9800
Body length2.7600
Body thread size1-1/2-16
Body width diameter0.9800
Clamping force lb26.98
Clamping force n120.00
Maximum operating pressure bar7.00
Maximum operating pressure psi100
Maximum operating pressure psig100
Mount typeThreaded Body
Operating volume cc8.87
Operating volume cu in0.5400
Operation typeAir
Port size10-32
Rod diameter0.5500
Swing directionRight Hand
Total stroke distance1.0400
Vertical stroke distance0.5300
