De-Sta-Co

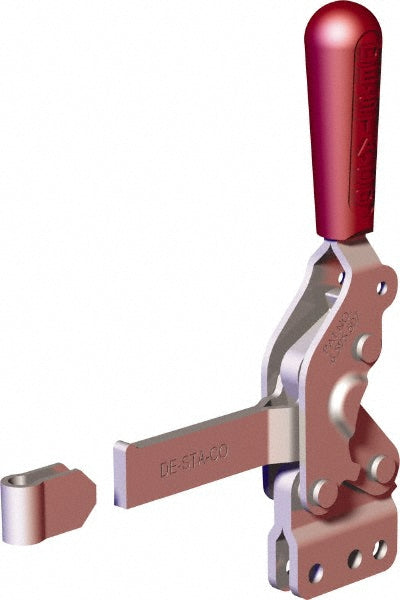

Toggle Clamp - De-Sta-Co 2007-SB
MFR# 2007-SB
$49.74List $55.16
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2007-SB is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees76
Bar styleSolid
Bar thickness0.2400
Base length (mm)49.28
Base styleStraight
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees64
Handle orientationVertical
Handle styleStraight
Height under bar1.6800
Holding capacity lb1000.40
Holding capacity n4450.00
IncludesBolt Retainer
Length distance between mount holes in0.7500; 1.2500
MaterialCarbon Steel
Mounting hole diameter0.2800
Number of mounting holes6
Overall height7.9400
Width distance between mount holes0.2500
