De-Sta-Co

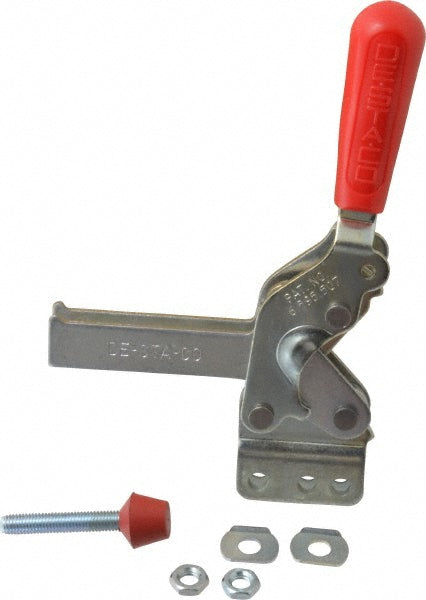

Toggle Clamp - De-Sta-Co 2007-UB
MFR# 2007-UB
$33.97List $37.02
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2007-UB is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees76
Bar styleU-Bar
Bar thickness0.1200
Bar width in3/4
Base length (mm)49.28
Base styleStraight
Base width in0.2500
Finish coatingZinc
Front of base to tip of toggle bar2.8800
Front of base to toggle tip2.88in
F 3 51
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees64
Handle orientationVertical
Handle styleStraight
Handle width1.2500
Height under bar1.6800
Holding capacity lb1000.00
Holding capacity n4450.00
IncludesFlanged Washers; Spindle Assembly
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage10:01
Mounting hole diameter0.2800
Number of mounting holes6
Overall height7.9400
Overall length6.6000
Spindle length (mm)60.00
Spindle thread sizeM8x1.25
Width distance between mount holes0.1600
