De-Sta-Co

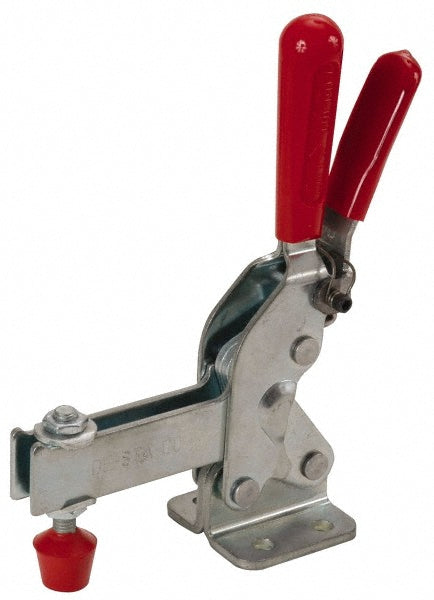

Toggle Clamp - De-Sta-Co 2007-UR
MFR# 2007-UR
$54.01List $57.04
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2007-UR is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees76
Bar styleU-Bar
Bar thickness0.1200
Bar width in3/4
Base length (mm)49.28
Base styleFlanged
Base width in1.9400
Finish coatingZinc
Front of base to tip of toggle bar2.8800
Front of base to toggle tip2.88in
F 3 51
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees64
Handle orientationVertical
Handle styleStraight
Handle width1.2500
Height under bar1.2500
Holding capacity lb1000.00
Holding capacity n4450.00
Includes(2) Nuts; Hex Head Spindle
Industry number2007-UR
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage10:01
Mounting hole diameter0.2800
Number of mounting holes6
Overall height7.1700
Overall length6.6000
Spindle length (mm)60.00
Spindle thread sizeM8x1.25
Width distance between mount holes1.2500
