De-Sta-Co

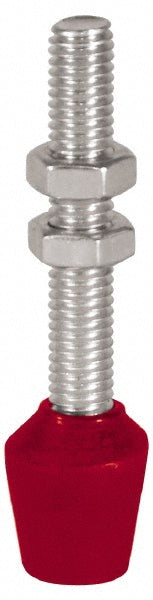

M8 Clamping Accessory - De-Sta-Co 2007208-M
MFR# 2007208-M
$3.21List $4.03
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2007208-M is a M8 clamping accessory.
Specifications
ApplicationToggle Clamps
For use withManual Operated Clamps
IncludesJam Nuts
Minimum operating temperature-22F
Nut height0.16in; 4.06mm
Nut height (mm)4.06
Overall length in2.48in; 62.99mm
Spindle materialCarbon Steel
Thread length (mm)1.7699
Thread sizeM8
Tip cap hardness80-85A
Tip cap materialNeoprene
Tip cap shapeFlat
Tip maximum diameter0.5500
Tip surface diameter0.8300
Tip typeCap
