De-Sta-Co

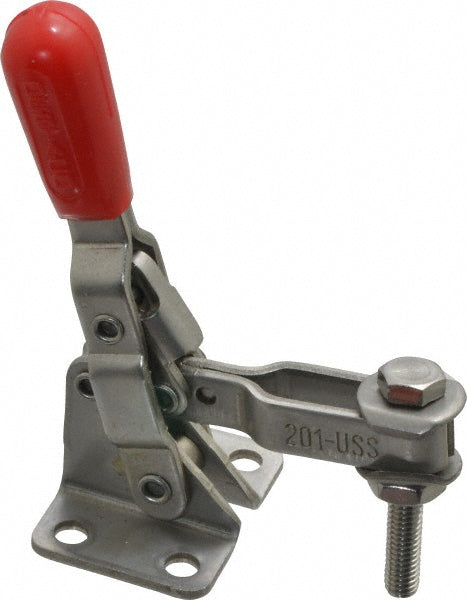

Toggle Clamp - De-Sta-Co 201-USS
MFR# 201-USS
$32.46List $32.83
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 201-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees100
Bar styleU-Bar
Bar width0.3100
Base length in1
Base styleFlanged
Base width in1.3400
Finish coatingZinc
Front of base to tip of toggle bar1.0400
Front of base to toggle tip1.04in
F 9 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees55
Handle orientationVertical
Handle styleStraight
Height under bar0.6300
Holding capacity lb125.00
Holding capacity n560.00
Includes(2) Nuts; Hex Head Spindle
Length distance between mount holes in0.63
MaterialStainless Steel
Maximum mechanical advantage06:01
Mounting hole diameter0.1700
Number of mounting holes4
Overall height3.0800
Overall length2.0400
Spindle length (mm)29.00
Spindle thread sizeM5x0.8
Spindle travel in0.7300
Width distance between mount holes0.9400
