De-Sta-Co

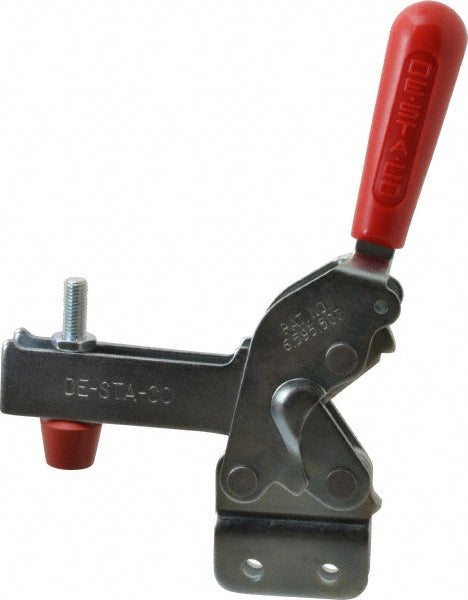

Toggle Clamp - De-Sta-Co 2010-UB
MFR# 2010-UB
$56.42List $61.48
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2010-UB is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees78
Bar styleU-Bar
Bar thickness0.3300
Bar width1.1300
Base length (mm)64.26
Base styleStraight
Base width in0.3200
Finish coatingZinc
Front of base to tip of toggle bar3.5500
Front of base to toggle tip3.55in
F 3 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees66
Handle orientationVertical
Handle styleStraight
Height under bar2.2000
Holding capacity lb1400.00
Holding capacity n6230.00
IncludesFlanged Washers; Spindle Assembly
Length distance between mount holes in1.25
MaterialCarbon Steel
Maximum mechanical advantage06:01
Mounting hole diameter0.3400
Number of mounting holes4
Overall height10.0000
Overall length7.5100
Spindle length (mm)90.00
Spindle thread sizeM10x1.5
Width distance between mount holes0.3200
