De-Sta-Co

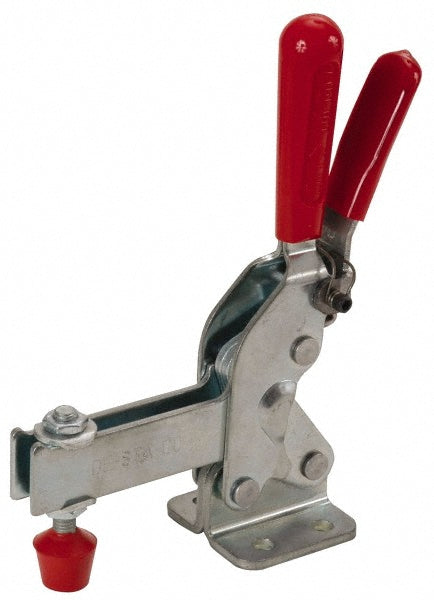

Toggle Clamp - De-Sta-Co 2010-UR
MFR# 2010-UR
$81.03List $84.76
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2010-UR is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees78
Bar styleU-Bar
Bar thickness0.1600
Bar width1.1300
Base length (mm)64.26
Base styleFlanged
Base width in2.6200
Finish coatingZinc
Front of base to tip of toggle bar3.5500
Front of base to toggle tip3.55in
F 3 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees66
Handle orientationVertical
Handle styleStraight
Height under bar1.7000
Holding capacity lb1400.00
Holding capacity n6230.00
Includes(2) Nuts; Hex Head Spindle; Toggle Lock Plus
Industry number2010-UR
Length distance between mount holes in1.25
MaterialCarbon Steel
Maximum mechanical advantage06:01
Mounting hole diameter0.3400
Number of mounting holes4
Overall height9.0800
Overall length7.5100
Spindle length (mm)90.00
Spindle thread sizeM10x1.5
Width distance between mount holes1.7800
