De-Sta-Co

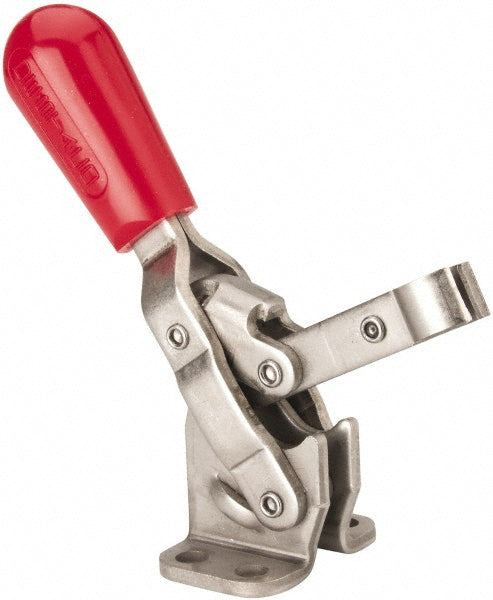

Toggle Clamp - De-Sta-Co 202-SS
MFR# 202-SS
$41.48List $41.95
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 202-SS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees105
Bar styleSolid
Bar width0.9200
Base length in1
Base styleFlanged
Base width in1.5600
Finish coatingZinc
Front of base to tip of toggle bar1.3100
Front of base to toggle tip1.31in
Handle colorRed
Handle materialStainless Steel
Handle movement degrees65
Handle orientationVertical
Handle styleStraight
Height under bar0.9300
Holding capacity lb250.00
Holding capacity n1110.00
Includes(2) Nuts; Hex Head Spindle
Length distance between mount holes in0.49
MaterialStainless Steel
Maximum mechanical advantage08:01
Mounting hole diameter0.2200
Number of mounting holes4
Overall height4.3300
Overall length2.3100
Spindle length (mm)44.00
Spindle thread sizeM6x1
Width distance between mount holes1.0600
