De-Sta-Co

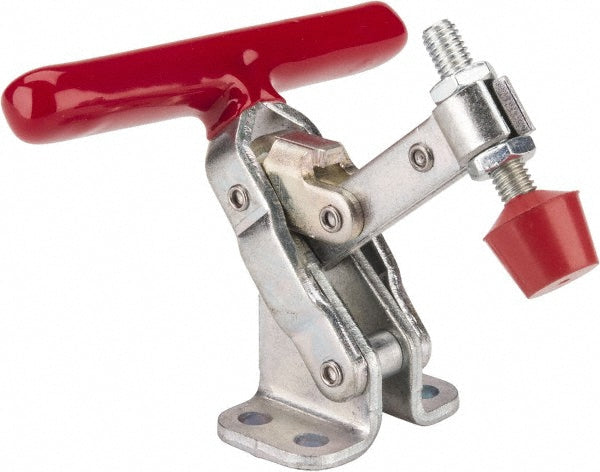

Toggle Clamp - De-Sta-Co 202-T
MFR# 202-T
$31.99List $32.35
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 202-T is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees105
Bar styleSolid
Bar width0.9200
Base length in1
Base styleFlanged
Base width in1.5600
Finish coatingZinc
Front of base to tip of toggle bar1.3100
Front of base to toggle tip1.31in
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees65
Handle orientationVertical
Handle styleT-Handle
Handle width3.5600
Height under bar9.9300
Holding capacity lb200.00
Holding capacity n890.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.49
MaterialCarbon Steel
Maximum mechanical advantage06:01
Mounting hole diameter0.2200
Number of mounting holes4
Overall height2.8400
Overall length3.4600
Spindle length (mm)44.00
Spindle thread sizeM6x1.0
Width distance between mount holes1.0600
